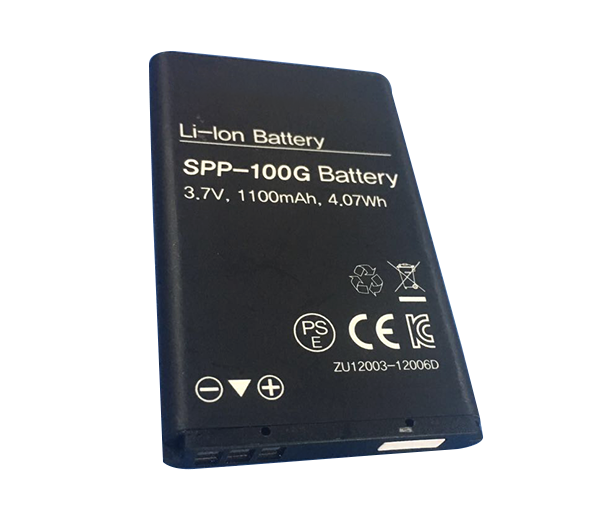

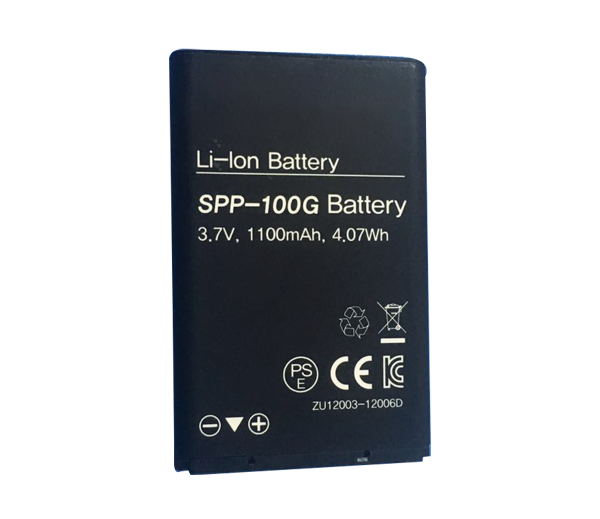

- Prismatic Battery -

1100mah

· Model number:KAL523450

· Nominal voltage:3.7V

· Nominal capacity:1000mAh

· Battery cell:523450/1S1P/1000mAh/3.7V

· Dimension:MAX50*34*10mm

· Application: TelMe RM tourguides receivers

Charging voltage: 4.2V

Charging current: ≤1.25A

Discharge current: 1.35A

Instant discharge current: 1.35A

Discharge cut-off voltage: 3V

Finished internal resistance: ≤180mΩ

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 55 ℃

Storage temperature: -10 ~ 45 ° C

Battery encapsulation: None

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: TelMe RM tourguides receivers  small mobile electronic device,medical motion capture devices,video door phones for home automation,light electrical vehicle
